Quick Assembled Steel Prefabricated Homes for sale
Our modular construction process offers design and planning flexibility: it can be either temporary or permanent, small or large, single-story or multi-story, an individual building, or multiple buildings arranged in a complex or campus. We help create high-quality building projects, built conforming to all applicable codes in far less time than traditional site-built construction, with 'green' consideration in terms of sustainable building materials, labor efficiency, reduced waste, reduced site disruption, and lower transportation emissions.
Highlights of our modular construction services include:
Services Offered:
Project Units Applicable:

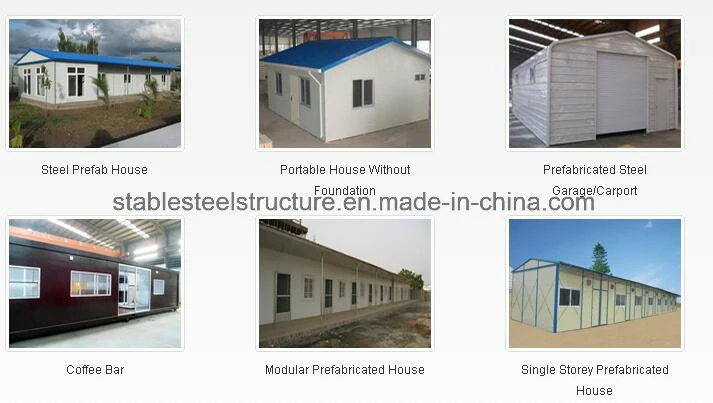

Accommodation unit, Hospital/clinic/medical facility, Labor camp, Dormitory, Office unit, Dining area, Recreation unit, Kitchen unit, Lavatory unit, Guard house, Drill/rig camp, Hotel Unit, School Unit, Generator unit, Reverse osmosis plant, Waste water treatment unit, Water storage, Water treatment unit, Power generation plant, Relief housing facility, Heavy duty unit, Diesel tank.
CE EN1090 certification:
Safety Production License (No.150090-03)
State Qualification Class One (No.B1084037152301-6/2)
Quality Management System Certification ISO9001:2008
Environment Management System Certification ISO14001:2004
Occupational Health and Safety Management System Certification
Pre assemble steel building before loading:
2. We will offer one stop service. construction drawing,calculation sheet will be offered to help you get construction permit. Foundation design could be free made if you need. We could make 3D drawings to show the view. What's more, Installation drawings will be offered and Steel structure column,beams will be marked number on it to help you install.
3. We will send you extra bolts,purlins,panels incase any damage when install.
4. Efficiency is our pursuit. Every inquiry ,emails will be replied immediately. Every questions will be paid high attention.
5. We also have possessed more than 40 sets of large precise and domestically advanced processing equipments, including large gantry planing machines, automatic submerged arc welding machines, assembling machines, slitters, shot blasting machines and so on.
6.We will offer details packing list for every container when load so it will be easier to unload.
7. Form A, Form E,CO,etc are available
8. "Moral personality decides product quality." is our guarantee to the products. "Customers come first." is our everlasting pursuit. Believe your choose, we'll give you a satisfied answer
High Quality Building Projects, Quicker
Stable offers modular construction services in a resource-efficient, off-site delivery method to enable clients to construct code-compliant prefabricated buildings in a quality-controlled factory setting.Our modular construction process offers design and planning flexibility: it can be either temporary or permanent, small or large, single-story or multi-story, an individual building, or multiple buildings arranged in a complex or campus. We help create high-quality building projects, built conforming to all applicable codes in far less time than traditional site-built construction, with 'green' consideration in terms of sustainable building materials, labor efficiency, reduced waste, reduced site disruption, and lower transportation emissions.
Highlights of our modular construction services include:
Services Offered:
- Site Installation
- Engineering & Design
- Camp Operations & Maintenance
- Power Generation
- Turnkey Solutions
- Hospitality & Catering
- Water & Sewage Treatment
Project Units Applicable:
Accommodation unit, Hospital/clinic/medical facility, Labor camp, Dormitory, Office unit, Dining area, Recreation unit, Kitchen unit, Lavatory unit, Guard house, Drill/rig camp, Hotel Unit, School Unit, Generator unit, Reverse osmosis plant, Waste water treatment unit, Water storage, Water treatment unit, Power generation plant, Relief housing facility, Heavy duty unit, Diesel tank.
CE EN1090 certification:
Safety Production License (No.150090-03)
State Qualification Class One (No.B1084037152301-6/2)
Quality Management System Certification ISO9001:2008
Environment Management System Certification ISO14001:2004
Occupational Health and Safety Management System Certification
| No. | Sort | Name | Specification |
| 1 | Specification | length | 12000mm or customized |
| 2 | Width | 5900mm or customized | |
| 3 | Wall height | 2800mm or customized | |
| 4 | Clear height | 2800mm or customized | |
| 5 | Roof slope | 11 degree or customized | |
| 6 | Standard accessory | Wall board | 50mm-150mm thickness EPS/glass wool/PU panel,0.5mm color steel sheet. 13kg/m3 polystyrene foam density. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.38w/.k. |
| 7 | Roof board | 50mm -100mm thickness EPS corrugated panel, 0.4mm steel sheet,13kg/m3 polystyrene foam density. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.58w//k. | |
| 8 | Door(D-1/2/3/4) | SIP single door with dimension of 750*2000mm, furnished with a cylinder lock with 3keys. Doorframe is steel wood or aluminium. | |
| 9 | Window(W-1) | PVC, white color, with dimension of 940*1000mm, glazed with glass in a thickness of 5mm, two bay fixed, and two bay sliding, supplied with fly screen. | |
| Window(W-2) | PVC, white color, with dimension of 940*500mm, glazed with glass in a thickness of 5mm, two bay fixed, and two bay sliding, supplied with fly screen. | ||
| 10 | Base beam | H style steel Q345, galvanized | |
| 11 | Base purline | C style steel, Q235, galvanized | |
| 12 | Base support | Square steel tube Q235, galvanized | |
| 13 | Base lifting part | Square steel tube, Q235, galvanized | |
| 14 | Base channel | Press forming steel plate or U shape steel. Q235, galvanized | |
| 15 | Roof beam | C style steel,Q235, painted | |
| 16 | Base panel | Plywood with 14mm thickness in room and bamboo panel with 14mm thickness in bath and kitchen | |
| 17 | Decoration and connection | Color steel sheet, 0.50mm thick | |
| 18 | Option | Decorative floor | PVC or laminated floor ceramic tiles |
| 19 | Drainage system | Provided plan, design and construction | |
| 20 | Electric system | Provided plan, design and construction | |
| 21 | Technical parameter | Bearing load | 30kg/m2 |
| 22 | Wind pressure: | 0.45KN/M2 | |
| 23 | Fire proof | B2 grade | |
| 24 | Resistant temperature | -20 to 50 |
Pre assemble steel building before loading:
Why Choose Us:
1.We have a group of professional engineers, most of whom has more than 10 years experiences in architecture field. our company has got a various of experiences in design, manufacture, installation and so on. The work staff have excellent skills. Some of them had helped customers to install the warehouse around the world.2. We will offer one stop service. construction drawing,calculation sheet will be offered to help you get construction permit. Foundation design could be free made if you need. We could make 3D drawings to show the view. What's more, Installation drawings will be offered and Steel structure column,beams will be marked number on it to help you install.
3. We will send you extra bolts,purlins,panels incase any damage when install.
4. Efficiency is our pursuit. Every inquiry ,emails will be replied immediately. Every questions will be paid high attention.
5. We also have possessed more than 40 sets of large precise and domestically advanced processing equipments, including large gantry planing machines, automatic submerged arc welding machines, assembling machines, slitters, shot blasting machines and so on.
6.We will offer details packing list for every container when load so it will be easier to unload.
7. Form A, Form E,CO,etc are available
8. "Moral personality decides product quality." is our guarantee to the products. "Customers come first." is our everlasting pursuit. Believe your choose, we'll give you a satisfied answer
